Product detail

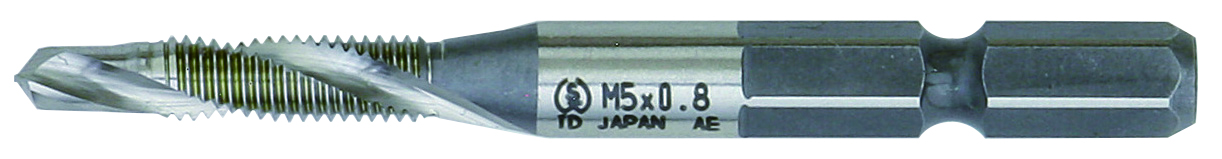

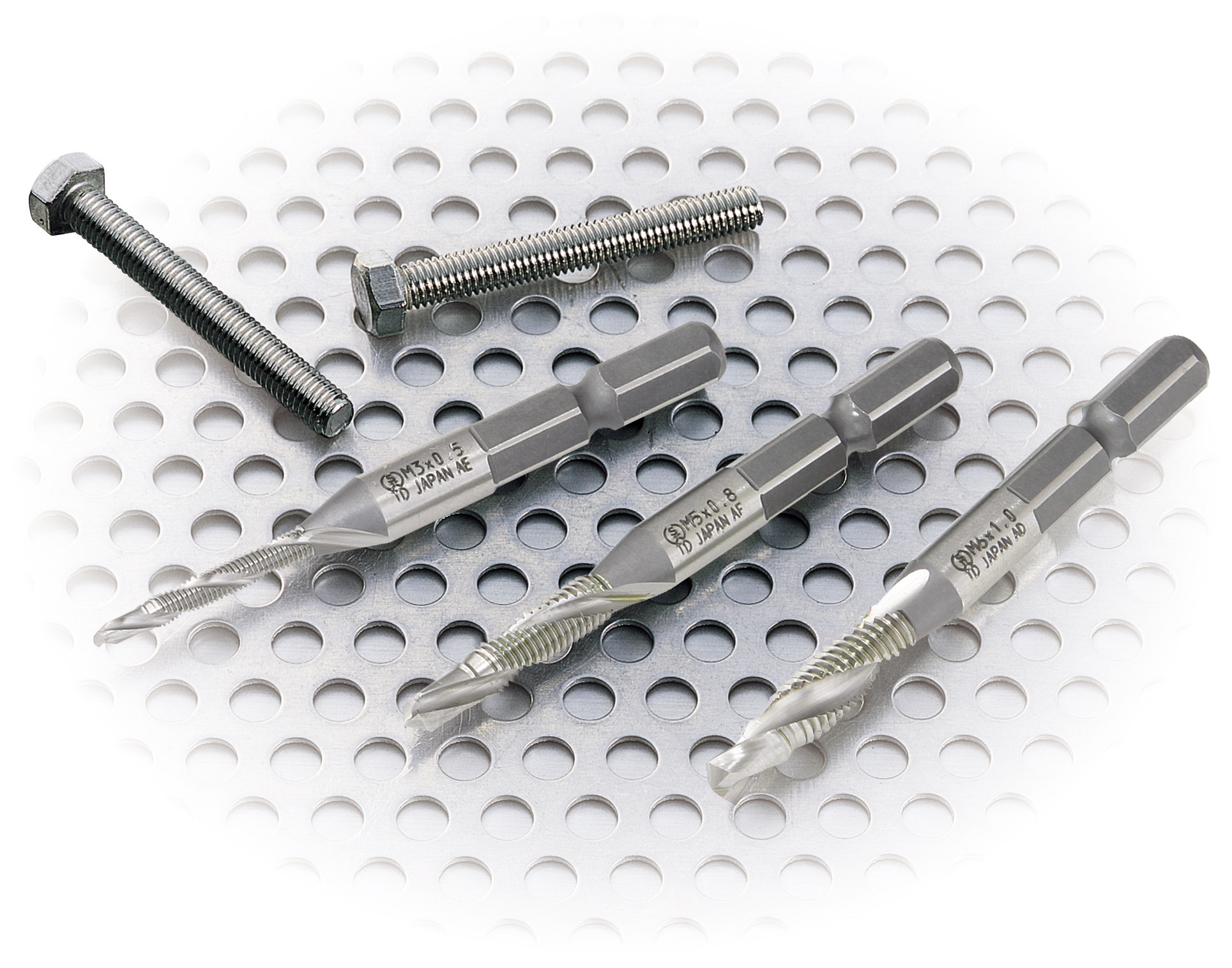

NO.50 Hex Shank Tapping Drill (Through hole)
ページ内メニュー
Hover your mouse over the image to enlarge
USE
・Making screw threads.
FEATURE
・Greatly save processing steps and time costs, improve working efficiency due to drill tap and countersink in one step.
・Has outstanding cutting quality due to the X-type thinning process providing good filing discharge at cutting edge.
・6.35 hex shank for quick change chuck.
SIZE
| Part Number | Size (mm) |
Inch | Full (mm) |
ドリル長さ (mm) |
タップ長さ (mm) |
Chuck (mm) |
JAN | Price | Total |
|---|---|---|---|---|---|---|---|---|---|
| 050-M305 | M3×0.5 | - | 66 | 4 | 13 | 6.35 | 4957934260511 | ￥3,580 | ￥3,938 |
| 050-M407 | M4×0.7 | - | 67 | 5 | 14 | 6.35 | 4957934260528 | ￥3,580 | ￥3,938 |
| 050-M508 | M5×0.8 | - | 68 | 6 | 15 | 6.35 | 4957934260535 | ￥3,580 | ￥3,938 |
| 050-M610 | M6×1.0 | - | 69 | 7 | 16 | 6.35 | 4957934260542 | ￥3,580 | ￥3,938 |
-
050-M305
￥3,580(￥3,938)
-
Size(mm):
M3×0.5
-
インチ:
-
-
Full(mm):
66
-
ドリル長さ(mm):
4
-
タップ長さ(mm):
13
-
Chuck(mm):
6.35
-
JAN:
4957934260511
-
-
050-M407
￥3,580(￥3,938)
-
Size(mm):
M4×0.7
-
インチ:
-
-
Full(mm):
67
-
ドリル長さ(mm):
5
-
タップ長さ(mm):
14
-
Chuck(mm):
6.35
-
JAN:
4957934260528
-
-
050-M508
￥3,580(￥3,938)
-
Size(mm):
M5×0.8
-
インチ:
-
-
Full(mm):
68
-
ドリル長さ(mm):
6
-
タップ長さ(mm):
15
-
Chuck(mm):
6.35
-
JAN:
4957934260535
-
-
050-M610
￥3,580(￥3,938)
-
Size(mm):
M6×1.0
-
インチ:
-
-
Full(mm):
69
-
ドリル長さ(mm):
7
-
タップ長さ(mm):
16
-
Chuck(mm):
6.35
-
JAN:
4957934260542
-
