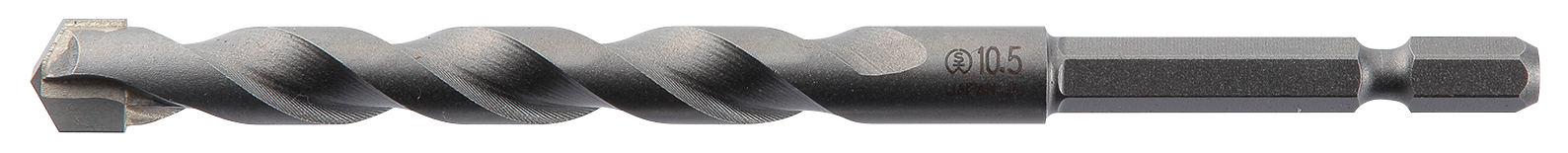

NO.24 Hex Shank Integrated Concrete Drill Bits

ページ内メニュー

product_images
product_images
product_images

Hover your mouse over the image to enlarge

product_small_images
product_small_images
product_small_images

USE

Drilling concrete, block, mortar, gypsum board.

FEATURE

・Design Hex shank for quick change of impact drill.
・Suitable in drilling a prepared hole for a plug anchor or no plug screw.
・Design polished tip drill for improving cutting quality.
・the shank and drill body has adhered completely.　
・Inserted the pin to prevent rotation or slipping out.

SIZE

Part Number Size
(mm)		 Inch Actual
(mm)		 Full
(mm)		 Ditch
(mm)		 Chuck
(mm)		 JAN Price Total
024-070 7.0 - - 120 66 6.35 4957934220706 ￥1,770 ￥1,947
024-075 7.5 - - 120 66 6.35 4957934220751 ￥1,770 ￥1,947
024-080 8.0 - - 120 66 6.35 4957934220805 ￥1,770 ￥1,947
024-085 8.5 - - 120 66 6.35 4957934220850 ￥2,080 ￥2,288
024-090 9.0 - - 130 85 6.35 4957934220904 ￥2,080 ￥2,288
024-095 9.5 - - 130 85 6.35 4957934220959 ￥2,570 ￥2,827
024-100 10.0 - - 130 85 6.35 4957934221000 ￥2,570 ￥2,827
024-105 10.5 - - 130 85 6.35 4957934221055 ￥2,740 ￥3,014
024-110 11.0 - - 130 85 6.35 4957934221109 ￥3,220 ￥3,542
024-115 11.5 - - 140 95 6.35 4957934221154 ￥3,220 ￥3,542
024-120 12.0 - - 140 95 6.35 4957934221208 ￥3,380 ￥3,718
024-125 12.5 - - 140 95 6.35 4957934221253 ￥3,380 ￥3,718
024-127 12.7 - - 140 95 6.35 4957934221277 ￥3,380 ￥3,718

  • 024-070

    ￥1,770(￥1,947)

    • Size(mm):

      7.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      120

    • Ditch(mm):

      66

    • Chuck(mm):

      6.35

    • JAN:

      4957934220706

  • 024-075

    ￥1,770(￥1,947)

    • Size(mm):

      7.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      120

    • Ditch(mm):

      66

    • Chuck(mm):

      6.35

    • JAN:

      4957934220751

  • 024-080

    ￥1,770(￥1,947)

    • Size(mm):

      8.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      120

    • Ditch(mm):

      66

    • Chuck(mm):

      6.35

    • JAN:

      4957934220805

  • 024-085

    ￥2,080(￥2,288)

    • Size(mm):

      8.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      120

    • Ditch(mm):

      66

    • Chuck(mm):

      6.35

    • JAN:

      4957934220850

  • 024-090

    ￥2,080(￥2,288)

    • Size(mm):

      9.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      130

    • Ditch(mm):

      85

    • Chuck(mm):

      6.35

    • JAN:

      4957934220904

  • 024-095

    ￥2,570(￥2,827)

    • Size(mm):

      9.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      130

    • Ditch(mm):

      85

    • Chuck(mm):

      6.35

    • JAN:

      4957934220959

  • 024-100

    ￥2,570(￥2,827)

    • Size(mm):

      10.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      130

    • Ditch(mm):

      85

    • Chuck(mm):

      6.35

    • JAN:

      4957934221000

  • 024-105

    ￥2,740(￥3,014)

    • Size(mm):

      10.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      130

    • Ditch(mm):

      85

    • Chuck(mm):

      6.35

    • JAN:

      4957934221055

  • 024-110

    ￥3,220(￥3,542)

    • Size(mm):

      11.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      130

    • Ditch(mm):

      85

    • Chuck(mm):

      6.35

    • JAN:

      4957934221109

  • 024-115

    ￥3,220(￥3,542)

    • Size(mm):

      11.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      140

    • Ditch(mm):

      95

    • Chuck(mm):

      6.35

    • JAN:

      4957934221154

  • 024-120

    ￥3,380(￥3,718)

    • Size(mm):

      12.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      140

    • Ditch(mm):

      95

    • Chuck(mm):

      6.35

    • JAN:

      4957934221208

  • 024-125

    ￥3,380(￥3,718)

    • Size(mm):

      12.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      140

    • Ditch(mm):

      95

    • Chuck(mm):

      6.35

    • JAN:

      4957934221253

  • 024-127

    ￥3,380(￥3,718)

    • Size(mm):

      12.7

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      140

    • Ditch(mm):

      95

    • Chuck(mm):

      6.35

    • JAN:

      4957934221277

Buy Here

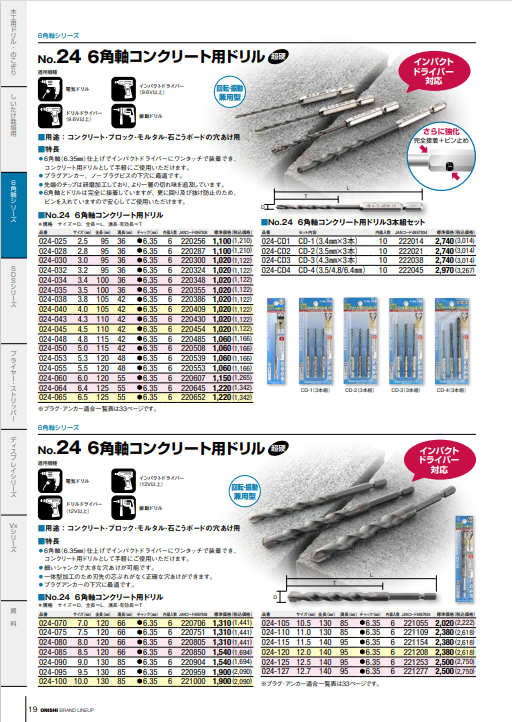

CATALOGUE
