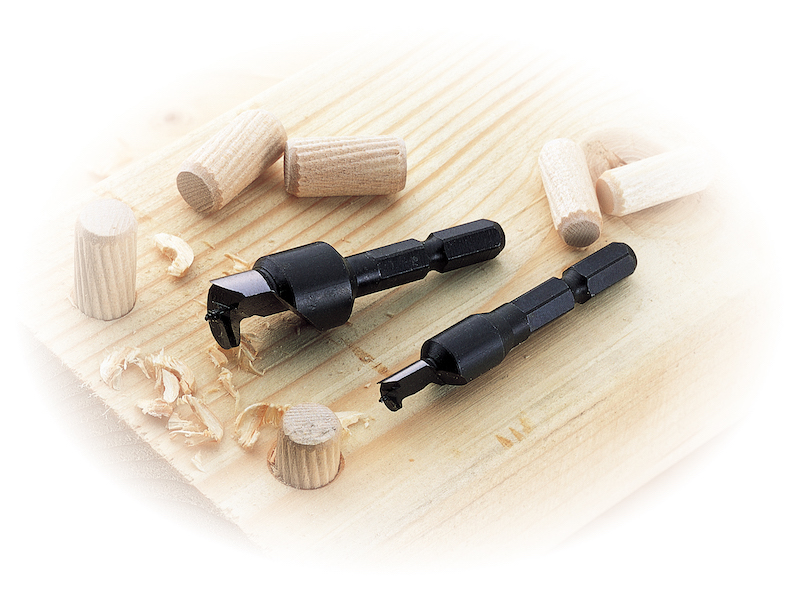

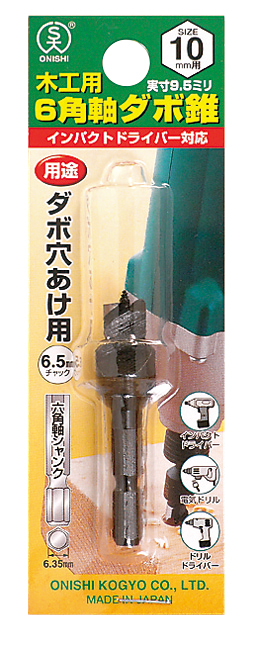

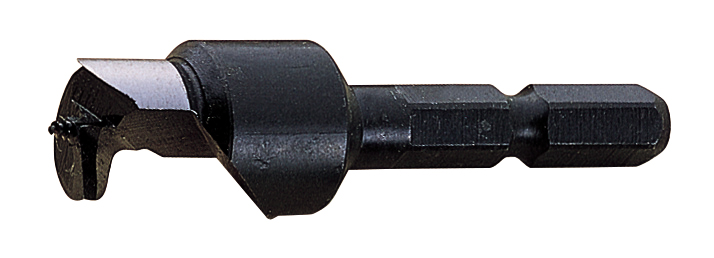

NO.22 Hex Shank Dowel Bits

ページ内メニュー

Hover your mouse over the image to enlarge

product_small_images
product_small_images
product_small_images

USE

Drilling wood for a dowel hole.

FEATURE

・Design short effective length for the specialised dowel hole.
・The stopper will support reducing extra rotation and keeping battery life and makes many holes with one charge.
・Design having a stopper for making a certain depth hole.

SIZE

Part Number Size
(mm)
Inch Actual
(mm)
Full
(mm)
Ditch
(mm)
Chuck
(mm)
JAN Price Total
022-060 6.0用 - 5.5 56 11.5 6.35 4957934090606 ¥1,150 ¥1,265
022-080 8.0用 - 7.5 56 11.5 6.35 4957934090804 ¥1,150 ¥1,265
022-090 9.0用 - 8.5 56 11.5 6.35 4957934090903 ¥1,150 ¥1,265
022-100 10.0用 - 9.5 56 11.5 6.35 4957934091009 ¥1,150 ¥1,265
022-110 11.0用 - 10.5 56 11.5 6.35 4957934091108 ¥1,150 ¥1,265
022-120 12.0用 - 11.5 56 11.5 6.35 4957934091207 ¥1,150 ¥1,265
  • 022-060

    ¥1,150(¥1,265 )

    • Size(mm):

      6.0用

    • インチ(mm):

    • Actual(mm):

      5.5

    • Full(mm):

      56

    • Ditch(mm):

      11.5

    • Chuck(mm):

      6.35

    • JAN:

      4957934090606

  • 022-080

    ¥1,150(¥1,265 )

    • Size(mm):

      8.0用

    • インチ(mm):

    • Actual(mm):

      7.5

    • Full(mm):

      56

    • Ditch(mm):

      11.5

    • Chuck(mm):

      6.35

    • JAN:

      4957934090804

  • 022-090

    ¥1,150(¥1,265 )

    • Size(mm):

      9.0用

    • インチ(mm):

    • Actual(mm):

      8.5

    • Full(mm):

      56

    • Ditch(mm):

      11.5

    • Chuck(mm):

      6.35

    • JAN:

      4957934090903

  • 022-100

    ¥1,150(¥1,265 )

    • Size(mm):

      10.0用

    • インチ(mm):

    • Actual(mm):

      9.5

    • Full(mm):

      56

    • Ditch(mm):

      11.5

    • Chuck(mm):

      6.35

    • JAN:

      4957934091009

  • 022-110

    ¥1,150(¥1,265)

    • Size(mm):

      11.0用

    • インチ(mm):

    • Actual(mm):

      10.5

    • Full(mm):

      56

    • Ditch(mm):

      11.5

    • Chuck(mm):

      6.35

    • JAN:

      4957934091108

  • 022-120

    ¥1,150(¥1,265 )

    • Size(mm):

      12.0用

    • インチ(mm):

    • Actual(mm):

      11.5

    • Full(mm):

      56

    • Ditch(mm):

      11.5

    • Chuck(mm):

      6.35

    • JAN:

      4957934091207

RELATED ITEM

No.22-D Wooden Dowel Pins

Use

For a joint system for joining another working material or a blind nail system.

Features

One point advice
Please use it with our brand of hex shank dowel bit. If you use another brand of hex shank dowel gimlet, the dowel marker may not fit correctly the hole size.
