Product detail

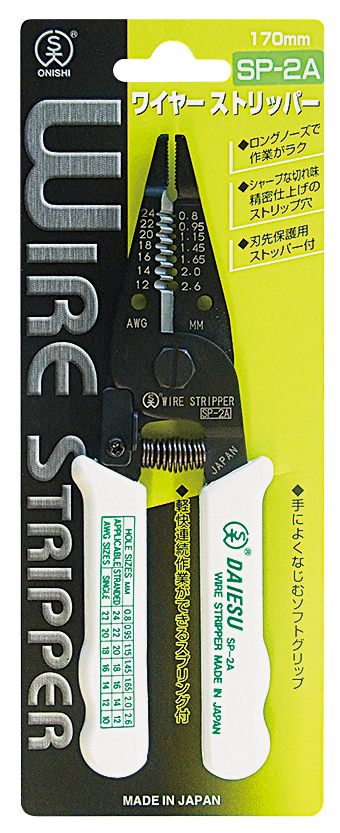

NO.SP-2A Wire Stripper for Thick wire
ページ内メニュー
Hover your mouse over the image to enlarge
USE
wiring work at automobile wiring, mechanical wiring, electrical equipment wiring
FEATURE
Designed work reliably and efficiently by using special material and Precise machining and induction heat treatment maximum insourcing.
SIZE
| Part Number | Full (mm) |
JAN | Price | Total |
|---|---|---|---|---|
| WS-SP2A | 170 | 4957934040106 | ￥2,660 | ￥2,926 |
-
WS-SP2A
￥2,660(￥2,926)
-
Full(mm):
170
-
JAN:
4957934040106
-
APPLICABLE SIZE
| Stopper’s Hole Diam（mm） | 0.8 | 0.95 | 1.15 | 1.45 | 1.65 | 2.0 | 2.6 | ||
|---|---|---|---|---|---|---|---|---|---|
| Applicable Wire | AWG Conversion | Stranded | 24 | 22 | 20 | 18 | 16 | 14 | 12 |
| Solid | 22 | 20 | 18 | 16 | 14 | (12) | (10) | ||
| Stopper’s Hole Diam（mm） | 0.8 | 0.95 | 1.15 | 1.45 | 1.65 | 2.0 | 2.6 | ||
|---|---|---|---|---|---|---|---|---|---|
| Applicable Wire | AWG Conversion | Stranded | 24 | 22 | 20 | 18 | 16 | 14 | 12 |
| Solid | 22 | 20 | 18 | 16 | 14 | (12) | (10) | ||
CATALOGUE
Click here to download the catalogue!
Download
