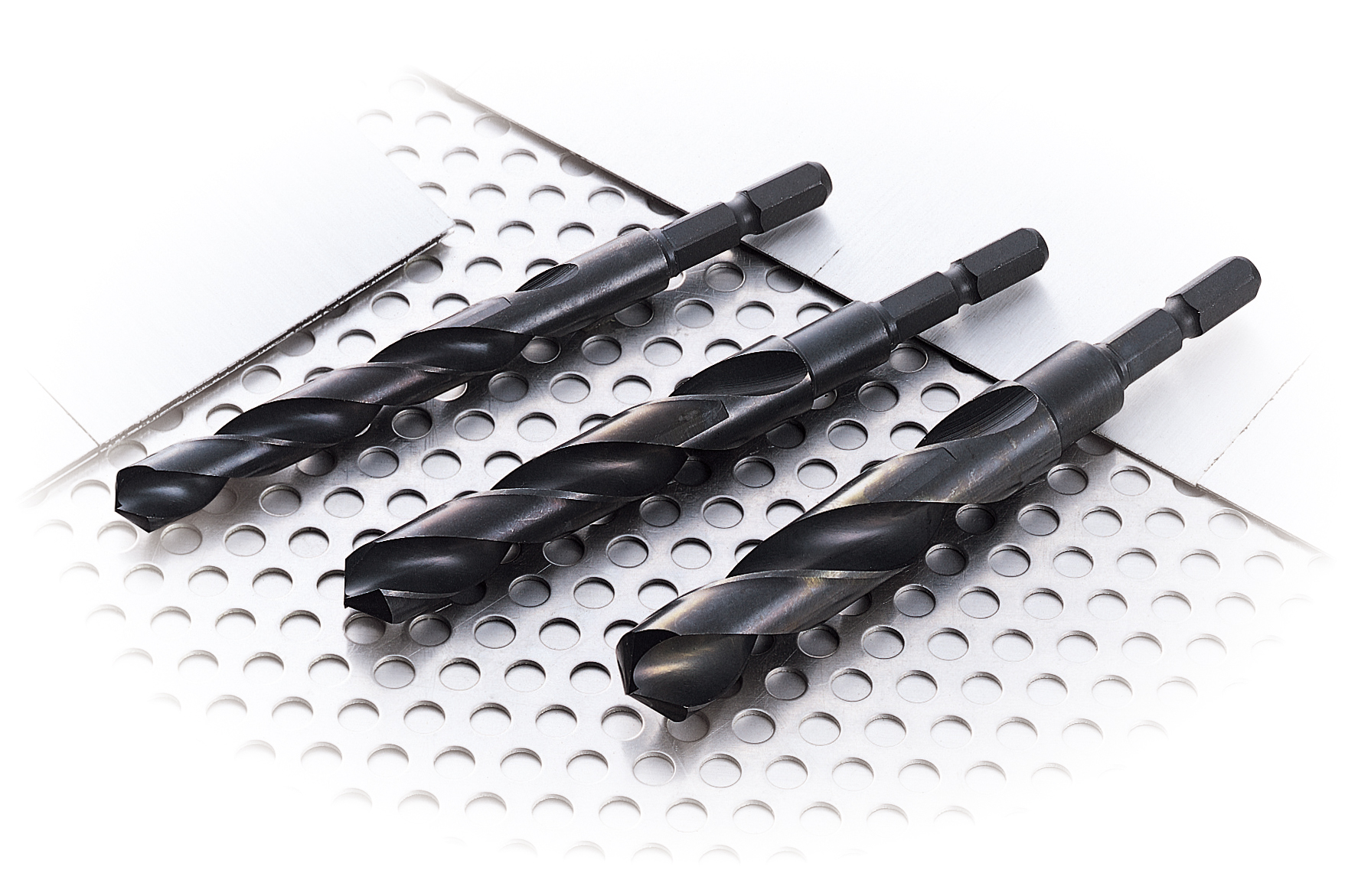

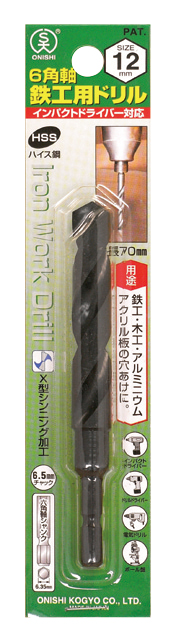

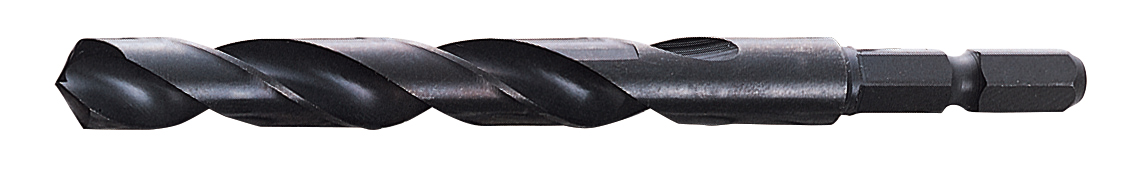

NO.20-E Hex Shank Integrated Iron Drill Bits

Hover your mouse over the image to enlarge

USE

Drilling iron, wood, aluminum, acryl board

FEATURE

・Design hex shank for quick change of impact drill.
・Allows you to help drilling on material easily as a steel drill.
・Design X style thinning at the tip for great chip discharge at the drill tip and prolong battery life.
・Less runout and drilling a hole accurately due to integrated processing.
・Centre punch is unnecessary.
・edge of blade lacks any centre runout.

SIZE

Part Number	Size (mm)	Inch	Actual (mm)	Full (mm)	Ditch (mm)	Chuck (mm)	JAN	Price	Total
020E-068	6.8	-	-	110	70	6.35	4957934070684	¥2,500	¥2,750
020E-070	7.0	-	-	110	70	6.35	4957934070707	¥2,290	¥2,519
020E-075	7.5	-	-	110	70	6.35	4957934070752	¥2,450	¥2,695
020E-080	8.0	-	-	110	70	6.35	4957934070806	¥2,540	¥2,794
020E-085	8.5	-	-	110	70	6.35	4957934070851	¥2,920	¥3,212
020E-090	9.0	-	-	110	70	6.35	4957934070905	¥3,130	¥3,443
020E-095	9.5	-	-	110	70	6.35	4957934070950	¥3,430	¥3,773
020E-100	10.0	-	-	110	70	6.35	4957934070004	¥3,680	¥4,048
020E-105	10.5	-	-	110	70	6.35	4957934071056	¥4,240	¥4,664
020E-110	11.0	-	-	110	70	6.35	4957934071100	¥4,460	¥4,906
020E-120	12.0	-	-	110	70	6.35	4957934071209	¥5,150	¥5,665
020E-130	13.0	-	-	110	70	6.35	4957934071308	¥5,940	¥6,534

020E-068

¥2,500(¥2,750)
- Size(mm):

  6.8
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070684
020E-070

¥2,290(¥2,519)
- Size(mm):

  7.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070707
020E-075

¥2,450(¥2,695)
- Size(mm):

  7.5
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070752
020E-080

¥2,540(¥2,794)
- Size(mm):

  8.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070806
020E-085

¥2,920(¥3,212)
- Size(mm):

  8.5
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070851
020E-090

¥3,130(¥3,443)
- Size(mm):

  9.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070905
020E-095

¥3,430(¥3,773)
- Size(mm):

  9.5
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070950
020E-100

¥3,680(¥4,048)
- Size(mm):

  10.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934070004
020E-105

¥4,240(¥4,664)
- Size(mm):

  10.5
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934071056
020E-110

¥4,460(¥4,906)
- Size(mm):

  11.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934071100
020E-120

¥5,150(¥5,665)
- Size(mm):

  12.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934071209
020E-130

¥5,940(¥6,534)
- Size(mm):

  13.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  110
- Ditch(mm):

  70
- Chuck(mm):

  6.35
- JAN:

  4957934071308
